項目Item |型號Medol
|
KXT-1
|
KXT-2
|
KXT-3
|
A、如介質酸堿物質
B、工作溫度有特殊要求
C、也可來函來圖定制
D、訂貨時需說明
A. If media is oil, acid or alkali.
B. If special requirements for working temperature
C. If OEM orders with drawings or samples
D. Please Inform us about above when ordering
|
|
工作壓力MpaWoring pressure
|
1.0(10)
|
1.6(16)
|
2.5(25)
|
|
|
爆破壓力Mpa Burst Pressure
|
2.0(20)
|
3.0(30)
|
4.5(45)
|
|
|
真空度 Kpa Vacuum
|
53.3(400)
|
86.7(650)
|
100(750)
|
|
|
適用溫度℃Applicable Temperature
|
-20℃~+115℃（特殊可達-30℃~+250℃）-20℃~+115℃(-30℃~+250℃ under special conditions)
|
|||
|
適用介質Applicable Medium
|
酸、堿等, acid, alkali, etc.
|
|||
|
注：主要零件材料同KXT型 Note: the materials of main parts are the same with those of KXT type
|
||||
|

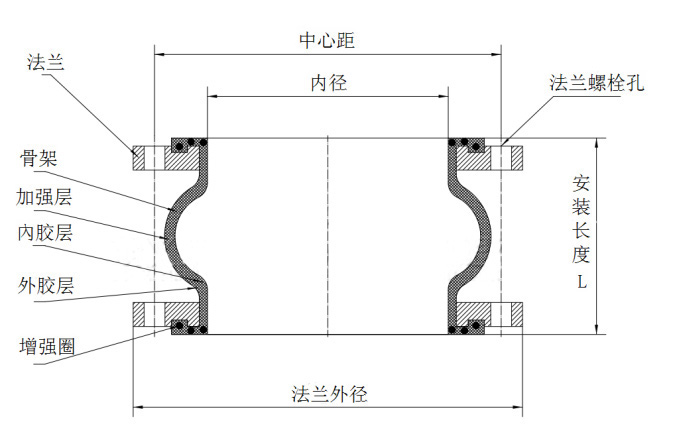

公稱通徑DN
Nominal Diameter （mm） |
長度
LengthLmm |
軸向位移
Axial displacement mm |
橫向位移
Haorizontal isplacement mm |
偏轉角度
Angular deflection(a1+a2)° |
||
|
mm
|
英寸inch |
伸長Extension
|
壓縮Compression
|
|||
|
32
|
1.25
|
95
|
6
|
9
|
9
|
15
|
|
40
|
1.5
|
95
|
6
|
10
|
9
|
15
|
|
50
|
2
|
105
|
7
|
10
|
10
|
15
|
|
65
|
2.5
|
115
|
7
|
13
|
11
|
15
|
|
80
|
3
|
135
|
8
|
15
|
12
|
15
|
|
100
|
4
|
150
|
10
|
19
|
13
|
15
|
|
125
|
5
|
165
|
12
|
19
|
13
|
15
|
|
150
|
6
|
180
|
12
|
20
|
14
|
15
|
|
200
|
8
|
210
|
16
|
25
|
22
|
15
|
|
250
|
10
|
230
|
16
|
25
|
22
|
15
|
|
300
|
12
|
245
|
16
|
25
|
22
|
15
|
|
350
|
14
|
255
|
16
|
25
|
22
|
15
|
|
400
|
16
|
255
|
16
|
25
|
22
|
15
|
|
450
|
18
|
255
|
16
|
25
|
22
|
15
|
|
500
|
20
|
255
|
16
|
25
|
22
|
15
|
|
600
|
24
|
260
|
16
|
25
|
22
|
15
|
|
700
|
28
|
260
|
16
|
25
|
22
|
15
|
|
800
|
32
|
260
|
16
|
25
|
22
|
15
|
|
900
|
36
|
260
|
16
|
25
|
22
|
15
|
|
1000
|
40
|
260
|
18
|
26
|
24
|
15
|
|
1200
|
48
|
260
|
18
|
26
|
24
|
15
|
|
1400
|
56
|
350
|
20
|
28
|
26
|
15
|
|
1600
|
64
|
350
|
25
|
35
|
30
|
10
|
|
1800
|
72
|
350
|
25
|
35
|
30
|
10
|
|
2000
|
80
|
350
|
25
|
35
|
30
|
10
|
|
2200
|
88
|
400
|
25
|
35
|
30
|
10
|
|
2400
|
96
|
400
|
25
|
35
|
30
|
10
|
|
2600
|
104
|
400
|
25
|
35
|
30
|
10
|
|
2800
|
112
|
400
|
25
|
35
|
30
|
10
|
|
3000
|
120
|
400
|
25
|
35
|
30
|
10
|
|

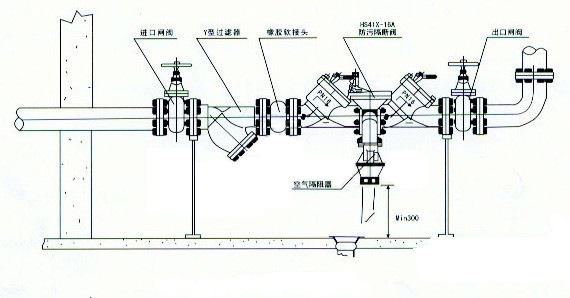

注：1、特殊要求可按用戶圖紙制作，法蘭標準采用GB/T9115.1-2000，可選配（GB、JB、HG、CB、ANSI、DIN、BSEN、NF、EN、JIS、 ISO等）法蘭標準生產。2、懸空給水使用DN200以上產品，管道必須有固定支撐或固定托架，否則產品應安裝防拉脫裝置。 3、用戶使用橡膠接頭，對應法蘭應是閥門法蘭或符合GB/T9115.1-2000法蘭。 Notes: 1. For OEM orders with special requirement, rubber joints can be made according to customers' drawings. Generally, flange standard is GB/T9115.1-2000, other GB, JB, HG, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO flanges are also available upon request.2.When rubber joints size above DN200 are used for overhead water supply system, the pipes must be equipped with fixed supports or fixed brackets, otherwise control units shall be installed on rubber joints. 3.Matching flanges of rubber joints shall be valve flanges or GB/T9115.1(RF) flanges. |
||||||
